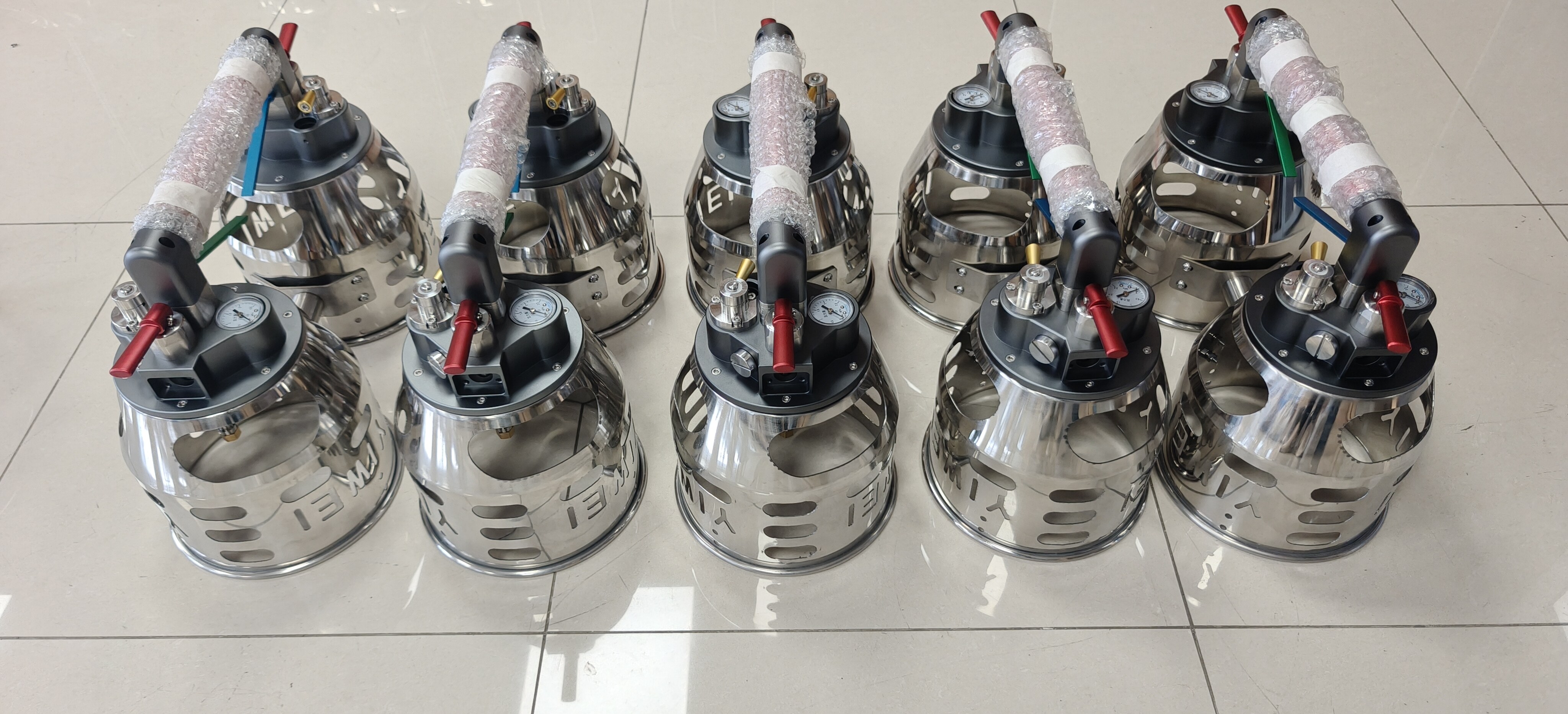

Burner

High-performance burner systems crafted from 316L stainless steel, tested for safety and reliability

Core Advantages

Precision manufacturing, safe and reliable, every detail strictly controlled

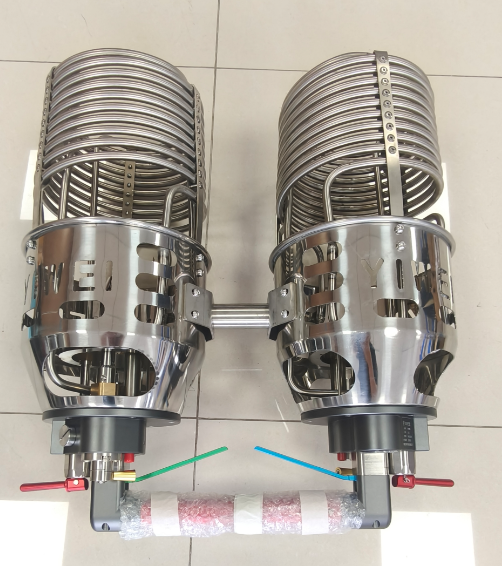

Made of 316L stainless steel coil, corrosion-resistant and heat-fatigue resistant, ensuring long-term stable operation

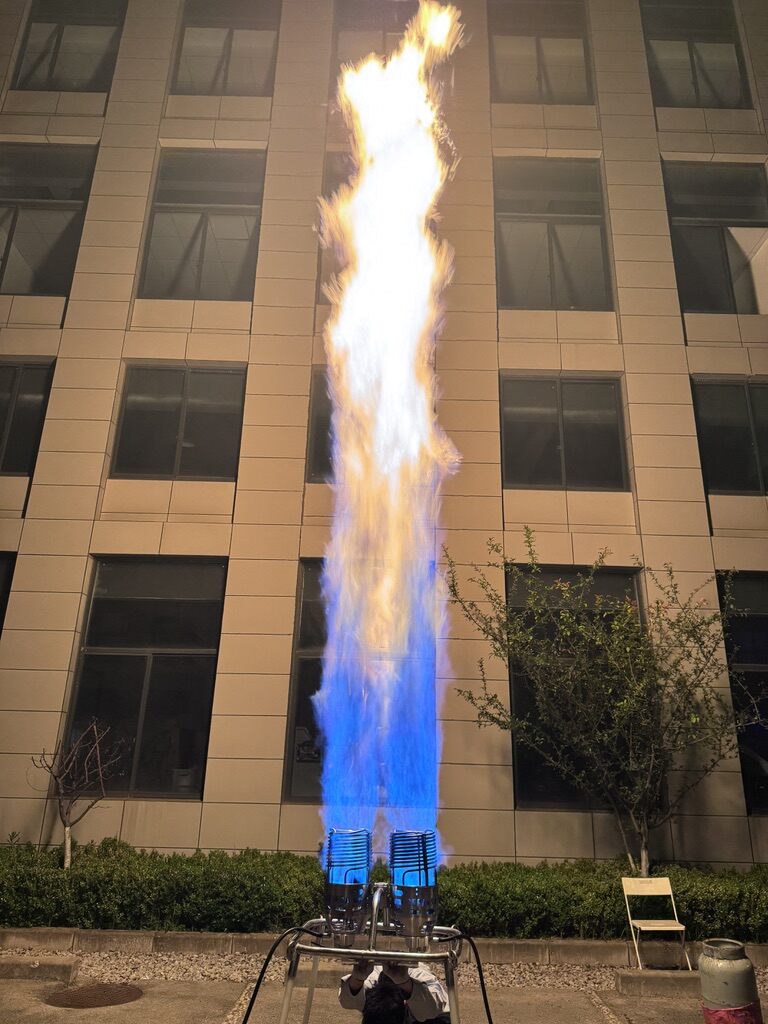

Every burner undergoes 12 bar pressure leak test and ignition function test before leaving the factory

Main valve adopts squeeze-type spring return design, safe and reliable operation with quick response

Three models covering 1800m³ to 15000m³ envelope volume

Nozzle Count2

Max Propane Consumption10 kg/min

Thermal Power~438,700 BTU/min

Applicable Envelope Volume1800 – 5000 m³

Weight25 kg

Nozzle Count3

Max Propane Consumption15 kg/min

Thermal Power~658,100 BTU/min

Applicable Envelope Volume4000 – 8000 m³

Weight38 kg

Nozzle Count4

Max Propane Consumption20 kg/min

Thermal Power~877,400 BTU/min

Applicable Envelope Volume6000 – 15000 m³

Weight56 kg

Fuel Type	Propane (Liquid Phase) / 丙烷（液相）
Working Pressure	3 – 12 bar
Ignition Method	Piezoelectric Ignition / 压电点火
Liquid Valve (Silent Combustion)	Standard / 标配
Pilot Light Indicator	Standard / 标配
Connection Type	Optional REGO / 可选 REGO

Thermal power calculated based on propane heat value 19,900 BTU/lb

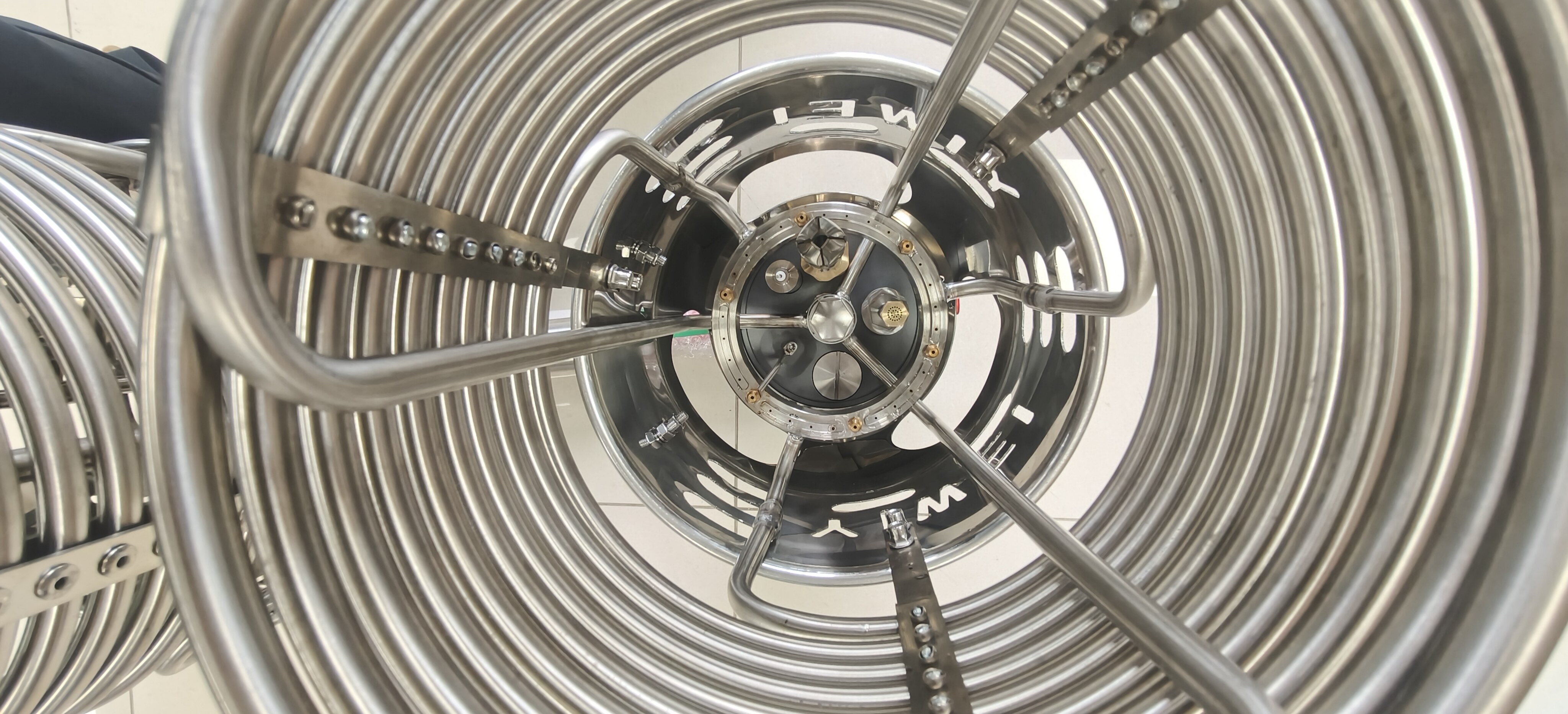

Coil made of 316L stainless steel, corrosion-resistant and heat-fatigue resistant

Every burner undergoes 12 bar pressure leak test and ignition function test before leaving the factory

REGO connection, can directly connect to European and American market standard hoses
